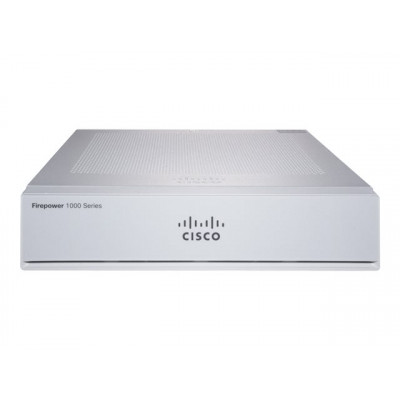

CISCO Firepower 1010 ASA Appliance Desktop

CISCO Firepower 1010 ASA Appliance Desktop
Manufacturer CISCO
Manufacturer Part No FPR1010-ASA-K9

Marketing Description
The Cisco Secure Firewall with the Firepower 1010 appliance and ASA software provides robust, proven Layer 3 and 4 security control. It includes Power-over-Ethernet and switchport capability for maximum flexibility, support for advanced remote access VPN termination, and BGP and OSPF routing functions. When Layer 7 application control and advanced threat defence are also required, select instead the Firepower 1010 appliance with FTD software.
Product Features
  • REMOTE-WORKER READY
    Pre-integrated support for additional Cisco Security capabilities, including Cisco AnyConnect remote access VPN and Cisco Duo multi-factor authentication.
  • SILENT
    Compact, fanless design for small office and desktop environments.
  • PERFORMANCE WITHOUT SACRIFICE
    Firepower 1000 Series firewall appliances include hardware-based acceleration, maintaining firewall performance in all conditions
  • CONFIGURABLE
    With available FTD base software, add network-based content inspection, IPS and URL filtering
  • PEACE OF MIND
    90-day limited warranty
General
Device Type Firewall
Width 19.9 cm
Depth 20.5 cm
Height 4.62 cm
Weight 1.36 kg
Processor / Memory / Storage
Hard Drive 200 GB x 1
Networking
Form Factor Desktop
Connectivity Technology Wired
Performance Firewall throughput (UDP): 2 Gbps
Multiprotocol firewall throughput: 1.4 Gbps
IPsec VPN throughput (450B UDP L2L test): 500 Mbps
Capacity Concurrent connections: 100000
New connections per second: 25000
VPN peers: 75
Features Fanless
Expansion / Connectivity
Interfaces 8 x - RJ-45
1 x 1000Base-T (management) - RJ-45
1 x serial - RJ-45
1 x USB 3.0 - Type A
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Manufacturer Warranty
Service & Support Limited warranty - advance hardware replacement - 90 days - response time: 10 days
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 90% (non-condensing)
FPR1010-ASA-K9
889728235372
