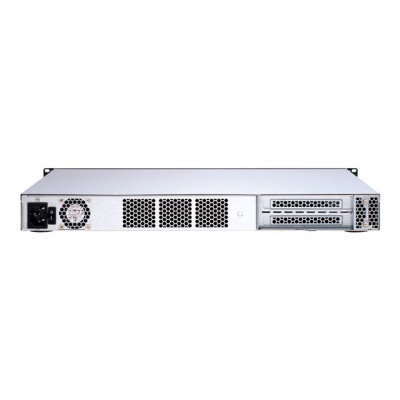

QNAP QGD-1600P-8G QGD-1600P 16x 1GbE PoE ports with 2x RJ45 and SFP+ combo ports

Описание

QNAP QGD-1600P-8G Managed Switch 14x 1GbE PoE+ 2x SFP PoE budget 360W 8GB RAM


Manufacturer	QNAP SYSTEMS
Manufacturer Part No	QGD-1600P-8G

Marketing Description
The QGD-1600P features SDN, enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Product Features
Comprehensive layer 2 management features The QGD-1600P provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. Dual-system of switch & NAS, enabling optimum performance The QGD-1600P features dual-system design, multi-port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification. One-stop IP surveillance system The QGD-1600P works seamlessly with your surveillance software service, to help build a cost-effective one-stop IP surveillance system. By integrating PoE, NVR, and NAS storage functions, the QGD-1600P significantly simplifies the surveillance network infrastructure while satisfying the requirements for surveillance deployment, central management, video recording and computing.
General
Device Type	Switch - 16 ports - smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	4 x 10/100/1000 (PoE++) + 10 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (PoE+)
Power Over Ethernet (PoE)	PoE++
PoE Budget	370 W
Performance	Non-blocking bandwidth: 16 Gbps Switching capacity: 32 Gbps
MAC Address Table Size	8K entries
Jumbo Frame Support	9KB
Remote Management Protocol	HTTP, CLI
Encryption Algorithm	FIPS 140-2, 256-bit AES, AES-NI
Features	Flow control, auto-negotiation, trunking, VLAN support, WOL, IGMP snooping, port mirroring, ACL support, LACP support, LLDP support, DHCP client, Energy Efficient Ethernet, loop prevention, SDN, schedule PoE, DNS client, port-based VLAN, port-based QoS, SNTP client, DSCP based QoS, PoE Detection
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Processor	1 x Intel Celeron: 1.8 GHz
RAM	8 GB (installed) / 8 GB (max) - SO-DIMM 260-pin - DDR4 SDRAM
Flash Memory	4 GB
Built-in Devices	Status LCD, 2 x 2.5" SATA 6Gb/s drive bays
Status Indicators	PoE, link/activity, speed
Expansion / Connectivity
Interfaces	4 x 1000Base-T RJ-45 PoE++ - 60 W 12 x 1000Base-T RJ-45 PoE+ - 30 W 2 x Gigabit LAN SFP 1 x HDMI output 2 x USB 2.0 Type A 1 x USB 3.0 Type A 1 x management (LAN) RJ-45
Expansion Slots	2 (total) / 2 (free) x PCI Express 2.0
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	418 Watt
Miscellaneous
Included Accessories	4 rubber feet, 6 x flat head screws (for 2.5" HDD)
Cables Included	1 x network cable
Rack Mounting Kit	Included
Compliant Standards	VCCI, BSMI, FCC, RCM
Software / System Requirements
Software Included	QTS 4.4.1
OS Required	UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016
Dimensions & Weight
Weight	4.41 kg
Dimensions & Weight (Shipping)
Shipping Width	52.8 cm
Shipping Depth	40.3 cm
Shipping Height	16 cm
Shipping Weight	5.56 kg
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 95% (non-condensing)
