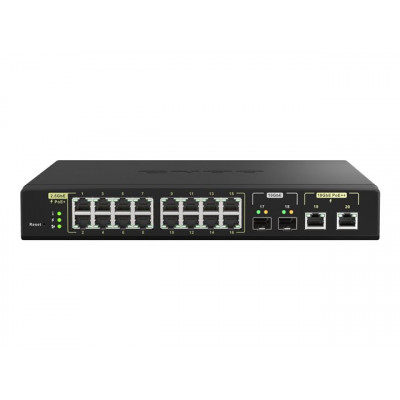

QNAP QSW-M2116P-2T2S 8port 2.5Gbps 2port 10Gbps SFP+ web managed switch

Описание

QNAP QSW-M2116P-2T2S Managed Switch 16x 2.5GbE 2x SFP+ 2x 10GbE


Manufacturer	QNAP SYSTEMS
Manufacturer Part No	QSW-M2116P-2T2S

Marketing Description
The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 380 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user-friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Product Features
Faster PoE and Backbone network transmission QSW-M2116P-2T2S has two 10GbE ports and sixteen 2.5GbE PoE ports for connecting various high-speed powered devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches, improving LAN and WAN transmission efficiency. The switching capacity of QSW-M2116P-2T2S is 160Gbps, guaranteeing the full potential of each port. Intelligent PoE functions for efficient, centralized PD management The QSW-M2116P-2T2S supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network. Wi-Fi 6 experience for hotels Hotel staff can connect Wi-Fi 6 wireless APs and routers with the QSW-M2116P-2T2S to provide their customers with an all-new high-speed Wi-Fi 6 experience. The QSW-M2116P-2T2S can also supply PoE to powered devices of IP surveillance systems, Smart Access Control Systems and Self-help Kiosks. Deploy Wi-Fi 6 for mobile offices High speed mobility is the key to business growth. The QSW-M2116P-2T2S not only helps businesses to build a high-speed wireless LAN infrastructure, but also provides backbone network uplinking capabilities.
General
Device Type	Switch - 20 ports - Managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	16 x 100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ + 2 x 100/1000/2.5/5/10G (PoE++)
Power Over Ethernet (PoE)	PoE++
PoE Budget	280 W
Performance	Switching capacity: 160 Gbps Non-blocking switching throughput: 80 Gbps
MAC Address Table Size	32K entries
Jumbo Frame Support	Yes
Features	Flow control, auto-negotiation, IGMP snooping, port mirroring, MAC address filtering, firmware upgradable, ACL support, QoS, Jumbo Frames support, LACP, loop prevention, port-based VLAN, web-based management, security slot (Kensington security lock compatible)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
Status Indicators	Port transmission speed, power, status, link/activity
Expansion / Connectivity
Interfaces	16 x 2.5Gbit LAN RJ-45 PoE+ - 30 W 2 x 10Gbit LAN SFP+ 2 x 10Gbit LAN RJ-45 PoE++ - 90 W 1 x management RJ-45
Power
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Power Consumption Operational	350 Watt
Miscellaneous
Included Accessories	4 rubber feet, rack mount kit, power cord
Rack Mounting Kit	Included
Compliant Standards	VCCI, BSMI, FCC, Class A
Dimensions & Weight
Width	28.5 cm
Depth	23.48 cm
Height	4.35 cm
Weight	2.08 kg
Dimensions & Weight (Shipping)
Shipping Weight	2.13 kg
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 95% (non-condensing)
