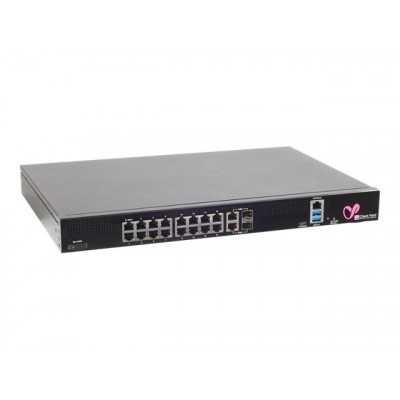

CHECK POINT 1600 appliance with SNBT subscription package and Direct Premium support for 1 year
zoom_out_map
chevron_left chevron_right

CHECK POINT 1600 appliance with SNBT subscription package and Direct Premium support for 1 year

CHECK POINT 1600 appliance with SNBT subscription package and Direct Premium support for 1 year
Manufacturer CHECK POINT
Manufacturer Part No CPAP-SG1600-SNBT-SS-PREM-1Y

Marketing Description
Check Point Quantum Spark security gateways are high performance, integrated devices offering firewall, VPN, antivirus, application visibility and control, URL filtering, email security and SandBlast ZeroDay Protection, all in compact form factors that are simple to configure and manage.
Product Features
  • Advanced security, uncompromising performance
    The Check Point Quantum Spark 1600 security gateways deliver enterprise-grade security in simple, affordable, all-inone security solutions in a 1 Rack Unit (RU) form factor to protect small to mid-size business employees, networks and data from cyber-theft.
  • Lower the complexity of managing your security
    Setup can be done in minutes using pre-defined security policies and a step-by-step configuration wizard. Check Point Quantum Spark Security Gateways are conveniently manageable locally via a Web interface and centrally with a cloud-based Check Point Security Management Portal (SMP) or R80 Security Management.
  • Simple, intuitive reporting
    The web interface shows logs, active computers, and hourly, daily, weekly and monthly reports. In-network analysis find top applications and users consuming the most bandwidth. Security analysis shows users visiting high-risk sites and using high-risk applications, as well as any incidents or infected hosts found during the reporting period.
General
Device Type Security appliance
Bundled Services 1 Year SandBlast (SNBT) Security Subscription Package and 1 Year Direct Premium support
Height (Rack Units) 1U
Built-in Devices 32GB eMMC, power on/off switch
Width 43 cm
Depth 30 cm
Height 4.42 cm
Weight 6.17 kg
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol RIP, BGP-4, IGMP, OSPFv2, BGP-4++
Performance Threat prevention throughput: 1.5 Gbps
NGFW throughput: 3.2 Gbps
IPS throughput: 3.5 Gbps
Firewall throughput: 4.8 Gbps
Firewall throughput (1518-byte UDP): 8 Gbps
VPN throughput (128-bit AES): 3.2 Gbps
Connection rate: 55000 connections per second
Capacity Concurrent connections: 2400000
Features Firewall protection, VPN support, URL filtering, anti-spam protection, Quality of Service (QoS), e-mail protection, application filtering, anti-virus protection, anti-bot protection, Multicast routing
Communications
Supported Flash Memory Cards microSD
Expansion / Connectivity
Interfaces 16 x 1000Base-T - RJ-45
1 x console - RJ-45
1 x Ethernet 1000 - RJ-45/SFP (mini-GBIC) (WAN)
1 x Ethernet 1000 - RJ-45/SFP (mini-GBIC) (DMZ)
1 x console - USB-C
2 x USB 3.0 - Type A
Miscellaneous
MTBF 22.26 years
Compliant Standards VCCI, ICES-003, EN55024, CB, FCC Part 15 B, EMC, RoHS, WEEE, REACH, EMI, EN 55032 Class B, IEC 62368-1, AS/NZS CISPR 32, UL/CUL 62368-1
Power
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 1
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 71.6 Watt
Power Provided 150 Watt
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% (non-condensing)
