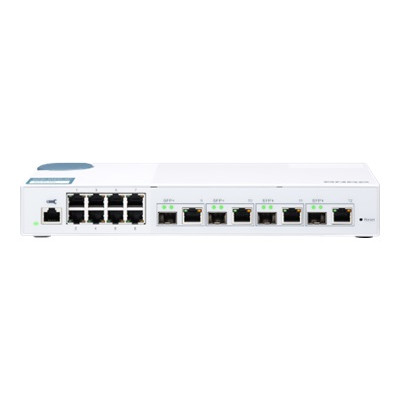

QNAP QSW-M408-4C 8 port 1Gbps 4 port 10G SFP+/ NBASE-T Combo Web Managed Switch

QNAP QSW-M408-4C Managed Switch 8x 1G with 4x SFP+/10GbE combo ports
Manufacturer QNAP SYSTEMS
Manufacturer Part No QSW-M408-4C

Marketing Description
The QSW-M408 is a switch equipped with four 10GbE SFP+ ports and eight Gigabit ports. Supporting layer 2 switching and network management via user-friendly web user interface, the QSW-M408 offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals.
Product Features
  • Flexible deployment
    The QSW-M408 provides four 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices.
  • Intuitive web GUI
    The QSW-M408 uses the QNAP QSS, which features an easy-to-use web GUI with value-added functions to simplify network set up and management.
  • Sleek design
    Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.
  • Value-added functions
    With the setting guide, status chart reference, online firmware update, the learning and management costs are greatly reduced.
  • Optimize network performance with bandwidth and packet control
    The QSW-M408 provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP snooping) for boosting network performance through IP grouping and bandwidth management.
  • Faster speeds using existing cables
    The QSW-M408 is compatible with 10GbE and NBASE-T technologies to support up to five speeds. The combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.
  • Desktop size for easy use in offices
    With a compact and modern design, the QSW-M408 fits perfectly alongside other devices in modern digital offices. Featuring a delicate design, the QSW-M408 helps users to easily identify each port.
General
Device Type Switch - 12 ports - Managed
Enclosure Type Desktop
Subtype 10 Gigabit Ethernet
Ports 8 x 10/100/1000 + 4 x combo 10 Gigabit SFP+
Performance Switching capacity: 96 Gbps
Non-blocking switching throughput: 48 Gbps
MAC Address Table Size 16K entries
Jumbo Frame Support 9KB
Routing Protocol IGMPv2, IGMP, IGMPv3
Remote Management Protocol RSTP
Features IPv4 support, LACP support, LLDP support, Energy Efficient Ethernet, VLAN management, port-based VLAN, web-based management
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
Status Indicators Port transmission speed, power, status, link/activity
Expansion / Connectivity
Interfaces 4 x 10GBase-X RJ-45/SFP+
8 x 1000Base-T RJ-45
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50 - 60 Hz)
Power Consumption Operational 31.46 Watt
Miscellaneous
Included Accessories Power cord
Dimensions & Weight
Width 29 cm
Depth 12.7 cm
Height 4.25 cm
Weight 1.15 kg
Dimensions & Weight (Shipping)
Shipping Weight 1.57 kg
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 45 °C
Humidity Range Operating 5 - 95% (non-condensing)
QSW-M408-4C
4713213516713
