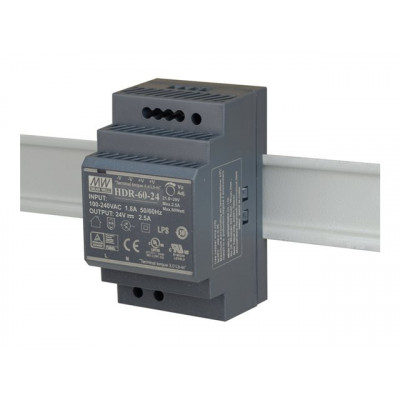

D-LINK 60W Ultra slim design with 17.5mm 1SU width

forхранване D-Link DIS-H60-24 60W Ultra slim design with 17.5mm (1SU) width DC output volt
Manufacturer D-LINK
Manufacturer Part No DIS-H60-24

Marketing Description
The D-Link power supply is engineered to meet the rigorous demands of network hardware environments. With a high efficiency rate of 90%, it not only delivers reliable power but also operates with minimal energy waste, making it an environmentally friendly choice. Its robust design ensures it can function in a wide range of temperatures, from the cold extremes of -30°C to the heat of 70°C, without compromising performance. Safety is paramount, and this power supply comes equipped with overload, overvoltage, and short-circuit protection, ensuring your network hardware is safeguarded against potential damage. With an impressive MTBF of 927,600 hours, it promises reliability. Its compatibility with a broad input voltage range and DIN rail mountable form factor makes it a versatile and easy-to-install solution for any network infrastructure.
Product Features
  • Robust performance
    Designed to operate in a wide range of environmental conditions, this power supply maintains its functionality in temperatures from -30°C to 70°C, ensuring reliable performance in extreme conditions.
  • High efficiency
    With an efficiency rate of 90%, this power supply ensures optimal performance while minimizing energy consumption, making it an eco-friendly choice for powering network hardware.
  • Enhanced safety features
    Equipped with overload, overvoltage, and short-circuit protection, this power supply ensures safe and uninterrupted operation, protecting both the device and the network infrastructure it supports.
General
Device Type Power supply - DIN rail mountable
Power Device
Input Voltage Range AC 85 - 264 / 277 V
Frequency Required 47 - 63 Hz
Output Voltage DC 24 V
Max Electric Current 2.5 A
Power Capacity 60 Watt
Efficiency 90%
Miscellaneous
MTBF 927,600 hours
Features Over voltage protection, overload protection, short-circuit protection
Compliant Standards UL 60950-1, IEC 60950-1, UL 508, EN61000-3-2, EN 61558-2-16
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature -30 °C
Max Operating Temperature 70 °C
Humidity Range Operating 20 - 90% (non-condensing)
Dimensions & Weight
Width 5.25 cm
Depth 5.45 cm
Height 9 cm
DIS-H60-24
790069437847
