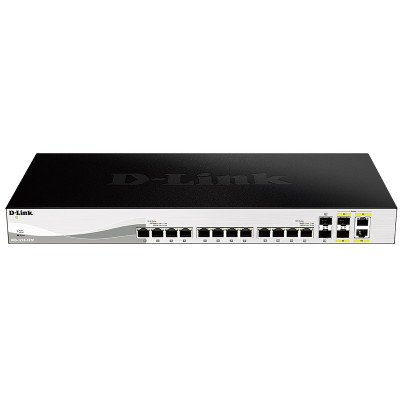

D-Link 16 Port switch including 12x10G ports, 2xSFP - 2xSFP/Combo
Fixed Port
- Захранване
- Internal power supply: 100 to 240 vac
- Модел
- Комутатор
- Stackable
- No
- Размери (ш, д, в), mm
- 440 x 210 x 44
- Сигурност
- Broadcast/multicast/unicast storm control, d-link safeguard engine, dhcp server screening, ip-mac-port binding, traffic segmentation, ssl (support v1/v2/v3, support ipv4/ipv6), dos attack prevention, port security, duplicate address detection
- Power over ethernet (poe)
- No
- Управление
- Web-based gui, d-link network assistant utility, full cli, telnet server, tftp client, configurable mdi/mdix, snmp (supports v1/v2c/v3), snmp trap, smart wizard, lldp, lldp-med, system log, bootp/dhcp client, sntp, icmp v6, ipv4/v6 dual stack,trusted host
- QoS
- 802.1p, 8 queues per port, queue handling - strict, weighted round robin (wrr), deficit round robin (drr), weighted deficit round robin (wdrr), strict + wdrr, bandwidth control - port-based (ingress/egress, min. granularity 64 kbps)
- Суич, тип
- Fixed port
- Общ брой портове
- 16
- Основни портове, тип
- 12x10gbase-t
- Uplink портове
- 2 dual personality, 2x10ge sfp
- Fans
- Yes
- Routing
- Layer 3 lite
- Капацитет за маршрутизиране/превключване, gbps
- 320 gbps
- Пропускателна способност, mpps
- 238.08 mpps
- Mac адреси
- 16000 mac address table size
- Vlan (брой, стандарти)
- 802.1q vlan, port-based vlan, 4k vlan groups, configurable vid 1-4094, voice vlan, auto surveillance vlan, asymmetric vlan
- L2 мрежови стандарти
- Ieee 802.3u, ieee 802.3ab, ieee 802.3az, ieee 802.3an, ieee 802.3ae, ieee 802.3z, ieee 802.1d, ieee 802.1w, ieee 802.1s, ieee 802.3x, ieee 802.3ad, ieee 802.1x, ieee 802.1q, ieee 802.1p
- Ipv6 functionality
- Ipv6 traffic class, ipv6 flow label, ipv6 neighbor discovery (nd)
- Опция за монтаж
- Rackmount
- Свободни (10gb) слотове
- No
- L3 мрежови стандарти
- Default route, static route: max. 64 ipv4/pv6 entries
