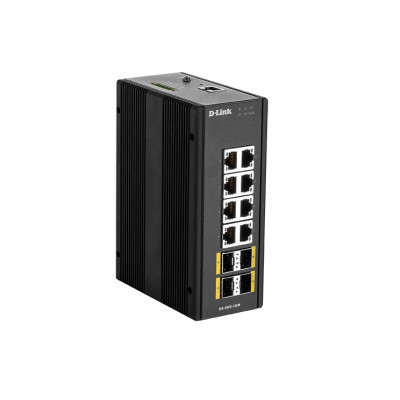

D-Link 12 Port L2 Managed Switch with 8 x 10/100/1000BaseT(X) ports - 4 x 100/1000BaseSFP ports
Fixed Port
- Захранване
- Input voltage range: 12-58 vdc, compatible power supplies: dis-h30-24, dis-h60-24, dis-n240-48, dis-n480-48
- Модел
- Комутатор
- Stackable
- No
- Размери (ш, д, в), mm
- 61 x 154 x 109
- Сигурност
- Ip and mac-based access control, ieee 802.1x authentication, network access control, authentication via local database, radius or tacacs+ aaa (authentication, accounting and authorization), multicast/broadcast/flooding storm control
- Power over ethernet (poe)
- No
- Управление
- Industrial-like cli (command line interface), web-based management, snmp v1, v2c, v3, telnet (5 sessions), ftp for configuration import/export and firmware upgrade, https, ssh, radius client for management, ntp/sntp, dhcp (client, server, relay, snooping)
- QoS
- Ieee 802.1p qos, 8 queues per port, scheduling schemes - spq, wrr, port-based shaping, radius-assigned qos class
- Суич, тип
- Fixed port
- Общ брой портове
- 12
- Основни портове, тип
- 8x10/100/1000base-t
- Uplink портове
- 4xsfp
- Fans
- Fanless design
- Routing
- Layer 2 only
- Mac адреси
- 8000 mac address table size
- Vlan (брой, стандарти)
- Port-based vlans, mac-based vlans, ip subnet-based vlans, protocol-based vlans, ieee 802.1q tag-based vlans, radius-assigned vlan, ieee 802.1ad double tagging (q in q), 256 max vlans
- L2 мрежови стандарти
- Ieee 802.3, ieee 802.3u, ieee 802.3ad, ieee 802.3x, ieee 802.1d, ieee 802.1w, ieee 802.1s, ieee 802.1q, ieee 802.1x, ieee 802.1ad, ieee 802.1ab, ieee 802.1p
- Свободни (10gb) слотове
- No
