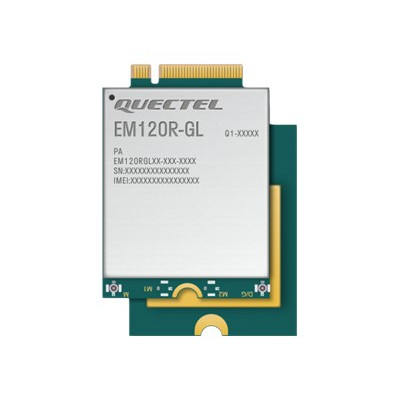

LENOVO ThinkPad QUECTEL SDX24 EM120R-GL CAT12 PCIE WWAN LTE MODULE For T14s/X13 X13 Yoga T14/15 L14/15 G2
LENOVO ThinkPad QUECTEL SDX24 EM120R-GL CAT12 PCIE WWAN LTE MODULE For T14s/X13 X13 Yoga T14/15 L14/15 G2
 |
||
| Manufacturer | LENOVO | |
| Manufacturer Part No | 4XC1D51447 | |
| Marketing Description | |
| EM120R-GL is an LTE-A category 12 module in an M.2 form factor designed in accordance with the 3GPP Release 14 specification which supports maximum downlink rates of 600 Mbps and uplink rates of 150 Mbps. EM120R-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo) and integrated GNSS greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/built-in eSIM (optional) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, consumer and industrial laptops, industrial PDAs, rugged tablet PCs, and digital signage. |
|
| Product Features | |
|
|
| General | |
| Device Type | Wireless cellular modem |
| Form Factor | Internal |
| Modem | |
| Bus | M.2 Card |
| Connectivity Technology | Wireless |
| Max Transfer Rate | 600 Mbps |
| Mobile Band | W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8 |
| Mobile Communication Protocol | UMTS, WCDMA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE |
| Features | Dual SIM Single Standby, 1.8/3.0V (U)SIM card support |
| Miscellaneous | |
| SIM Card Supported | Dual SIM (eSIM+nano-SIM) |
| Compliant Standards | WHQL, JATE, CCC, IC, FCC, ANATEL, TELEC, PTCRB, GCF, KC, SRRC, NCC, RCM, ICASA, NAL, IFETEL |
| Dimensions & Weight | |
| Width | 4.2 cm |
| Depth | 3 cm |
| Height | 0.23 cm |
| Weight | 6.8 g |
| Environmental Parameters | |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 75 °C |
| Compatibility Information | |
| Designed For | (WWAN-ready): Lenovo ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6 Lenovo ThinkPad L15 Gen 2 20X3, 20X4, 20X7 Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0 Lenovo ThinkPad P15s Gen 2 20W6, 20W7 Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XL Lenovo ThinkPad T14s Gen 2 20WM, 20WN Lenovo ThinkPad T15 Gen 2 20W4, 20W5 Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 Lenovo ThinkPad X13 Gen 2 20WK, 20WL Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 |
