| Marketing Description |

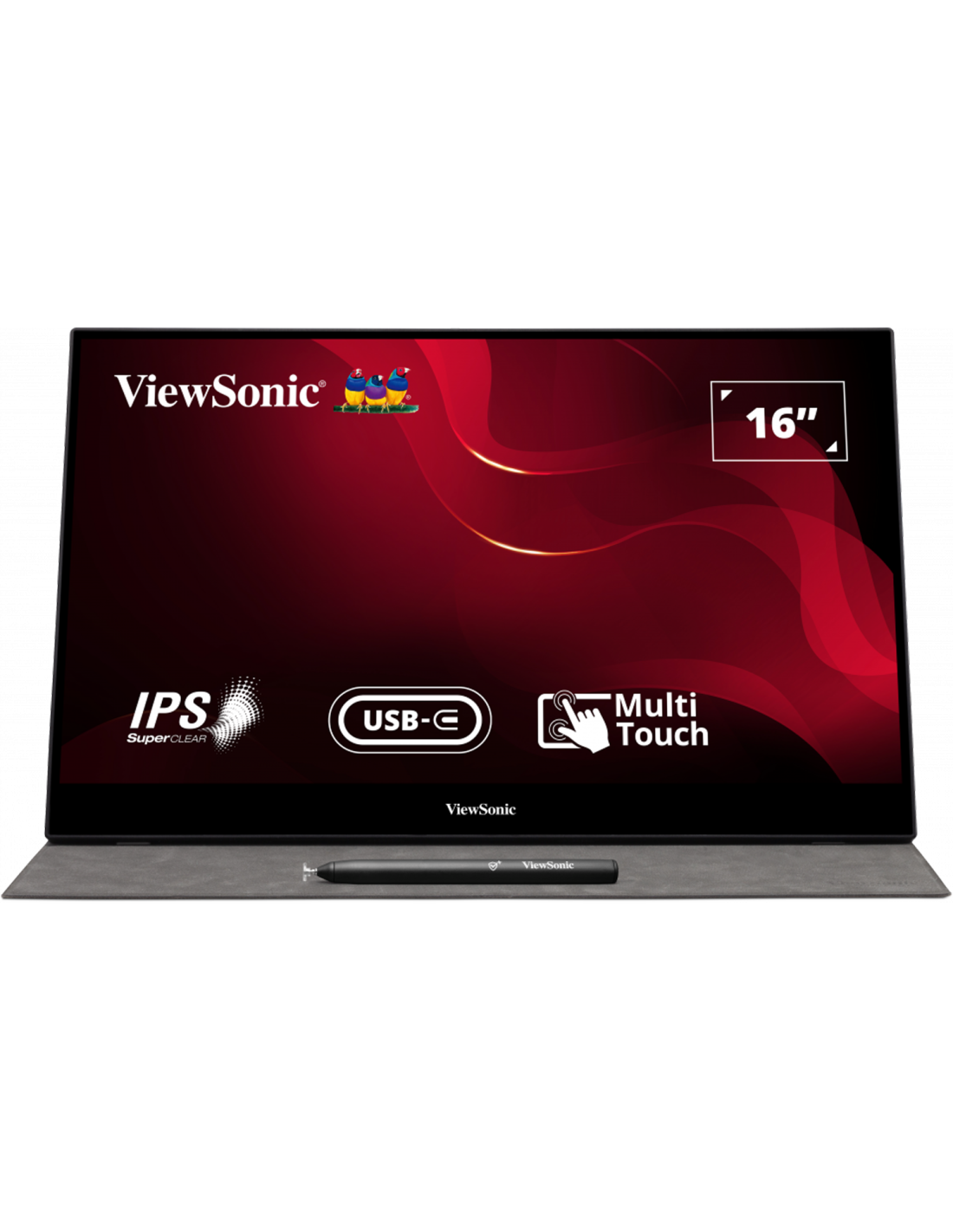

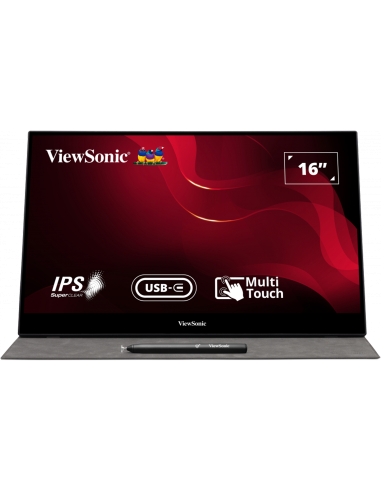

| The ViewSonic TD1655 is a portable 16" Full HD monitor with 10-point multitouch capability designed for dual-screen productivity beyond the office. Extend your display from phone, tablet, or laptop to a larger screen for seamless multitasking, personalized one-on-one presentation, or relaxed entertainment. The two universal USB-C connectors provide a one-cable solution for multimedia transfer and power charging. Tailor your work setup to your preferences with adjustable viewing angles and the option for both landscape and portrait display layouts. With a detachable magnetic anti-slip cover, metal case, and foldable aluminum stand designed for convenient mobility, enhance your mobile workstation anywhere, anytime. |
| Product Features |
- Advanced touch capabilities and screen performance
An advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.
- Full HD resolution
This monitor features Full HD resolution for unbelievable pixel-by-pixel image performance. You'll experience amazing clarity and detail whether it be while working, gaming, or enjoying multimedia entertainment.
- Frameless design
A premium panel delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you'll enjoy stunningly detailed images, unbound and without borders, no matter your vantage point.
|
| General |
| Display Type |
LED-backlit LCD monitor / TFT active matrix |
| Energy Class |
Class C |
| Diagonal Size |
16" |
| Viewable Size |
15.6" |
| USB Power Delivery |
60 Watt |
| Panel Type |
IPS |
| Aspect Ratio |
16:9 |
| Native Resolution |
Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch |
0.179 mm |
| Brightness |
250 cd/m² |
| Contrast Ratio |
800:1 / 50000000:1 (dynamic) |
| Colour Support |
262,000 colours |
| Colour Gamut |
45% NTSC, 64% sRGB |
| Response Time |
6.599 ms (grey-to-grey with overdrive), 30 ms (typical tr+tf) |
| Vertical Refresh Rate |
50 - 75 Hz |
| Horizontal Refresh Rate |
15 - 82 kHz |
| Horizontal Viewing Angle |
178 |
| Vertical Viewing Angle |
178 |
| Screen Coating |
6H Hard Coating |
| Backlight Technology |
LED backlight |
| Features |
Overdrive technology, scratch-resistant, anti-fingerprint, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, 6-bit gamma, portrait mode, metal casing |
| Dimensions (WxDxH) |
35.5 cm x 1.6 cm x 22.3 cm - without stand |
| Weight |
1 kg |
| Audio |
| Type |
Speakers - stereo |
| Output Power / Channel |
0.8 Watt |
| Input |
| Type |
Touch-screen - touchscreen |
| Movement Detection Technology |
Projected capacitive |
| Connectivity |
| Interfaces |
2 x USB-C 3.1
Mini HDMI
Audio line-out (mini-jack) |
| Mechanical |
| Display Position Adjustments |
Tilt |
| Tilt Angle |
-20/+60 |
| Miscellaneous |
| Features |
Anti-slip cover, aluminium stand |
| Included Accessories |
Cleaning cloth, protective cover, passive touch pen |
| Cables Included |
Mini-HDMI cable
USB-C to USB 3.2 Gen 1 cable
1 x USB-C to USB-C cable |
| Backlight Life |
15000 hours |
| Compliant Standards |
FCC Class B certified, VCCI, BSMI, ICES-003, CB, EMC, RoHS, WEEE, PSE Mark, cTUVus, REACH, CEC, UkrSEPRO, ERP, EAC, RCM, BIS, GEMS, NRCAN, Mexico Energy label, Mexico CoC, UKCA |
| Power |
| Input Voltage |
AC 100-240 V (50/60 Hz) |
| Power Consumption SDR (On mode) |
7.8 kWh/1000h |
| Power Consumption (Typical) |
8 Watt |
| Power Consumption (Max) |
8.3 Watt |
| Power Consumption Stand by |
0.5 Watt |
| Dimensions & Weight |
| Dimensions & Weight Details |
Without stand - width: 35.5 cm - depth: 1.6 cm - height: 22.3 cm - weight: 1 kg
With stand - width: 35.5 cm - depth: 1.6 cm - height: 22.3 cm - weight: 1 kg |
| Dimensions & Weight (Shipping) |
| Shipping Width |
44 cm |
| Shipping Depth |
8.9 cm |
| Shipping Height |
28.8 cm |
| Shipping Weight |
2.3 kg |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Bronze |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts and labour - 3 years - pick-up and return |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 90% (non-condensing) |
